Place of Origin : Guangdong, China
Model Number : P10
Brand Name : Longrun
Supply Ability : 500 Square Meter/Square Meters per Month
Packaging Details : 2 in 1 flight case
MOQ : >=1 Square Meters
Price : Negotiable
LED chip : Epistar
Life span : 100000hours
Certificate : CE ROHS
Warranty : 2 Years
Application : Adervertising
Usage : Indoor
Tube Chip Color : 1RGB
Display Function : animation, graphics, video
Pixels : 10
Screen Dimension : Customized
Port : Shenzhen
Outdoor Largest Stadium Tv Screen , Football Ground Advertising Boards
1. High color contrast and consistency, high brightness to ensure good display result.
2. CNC technology for cabinet, flatness between cabinet units <0.2mm.
3. Energy saving and noiseless power supply, excellent heat dissipation to ensure good stability and life span.
4. Constant current driver, luminance decrease <5% per year.
| Specification | Outdoor | |||
| P5 | P6 | P8 | P10 | |
| Pixel Pitch(mm) | 75 | 6 | 8 | 10 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size(mm) | 160*160 | 192*192 | 320*160 | 320*160 |
| Scanning Mode | 8 | 4 | 4 | 2 |
| Optimum Viewing Angle | H;140°,V;120°
| |||
| Brightness(cd/m2) | 5500-6000 | 6300-6500 | 6300-6500 | 6500-7000 |
| Grey Scale(bit) | 14bit | |||
| Refresh Rate(HZ) | 1920 | |||
| Power Consumption (Max.Ave)(w/sqm) | 800/266 | 780/260 | ||
| Cabinet Resolution(PX) | 192*192 | 160*160 | 120*120 | 96*96 |
| Cabinet Size(mm) | 960*960 | |||
| Cabinet Weight(kg) | 42 | |||
| Protection Level | IP65 | |||
| Working Temperature(℃) | -40℃-65℃ | |||
| Operation Humidity(RH) | 10% - 90% | |||










|
|

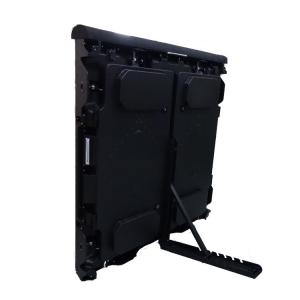

Outdoor Largest Stadium Tv Screen , Football Ground Advertising Boards Images |
