3G 4G Wireless Smart LED Advertising Screen 2000- 7000cd/Sqm Brightness

Product Categories

Shenzhen Longrun LED Optelectronic CO.,LTD

Contact Now

Name: 3G 4G Wireless Smart LED Advertising Screen 2000 7000cdSqm Brightness
Brand: Longrun
Price: 1 USD

Place of Origin : Guangdong, China

Model Number : p8 led display

Brand Name : Longrun

MOQ : 1 Piece

Price : Negotiable

LED type : 3528SMD

Pixels per sqm : 15625 dots

Module size : 256*128mm

Brightness : 2000- 7000cd/sqm

Scan method : 1/4scan

Fresh rate : >= 1920Hz

Grey Level : 14bit

Certificate : CE,RoHS,CCC,ISO9001

Life Span : >10,000hours

View distance : 8~70m

Usage : OUTDOOR

Display Function : Video

Screen Dimension : custom size

Tube Chip Color : FULL COLOR

Pixels : 8mm

Selling Units : Single item

Single package size : 126X26X205 cm

Single gross weight : 120.0 kg

Package Type : outdoor led display packing: *honeycomb carton is for fixed installation *flightcase packing is for rental use

Contact Now

3G 4G Wireless Smart LED Advertising Screen 2000- 7000cd/Sqm Brightness

Product Description

P8 outdoor Street Lamp post LED Display Specification:

LEDS	Pixel pitch	8 mm
	Pixel configuration	1RGB
	LED type	SMD 3535
	LED manufature and origin	KN light
Cabinet	Pixel pitch	8 mm
	Pixels per sqm.	15,625 pixels
	LEDs qty. per sqm.	15,625 pcs
	LED module resolution	32 x 16
	LED module size	256mm x 128mm
	LED cabinet resolution	128(W) x 224(H) pixels
	LED cabinet dimension	Width: 1024mm
		Height: 1792mm
		Depth: 140mm
	LED cabinet area	1.84 sqm
	Brightness	6200-6500nits
	Viewing angle	Horizontal: 120º
		Vertical: 100º
	Grey scale (linear)	16,384 levels per color
	Display refresh rate	>1920 Hz
	Scan mode	1/4 scan
Power supply	Power consumption (max.)	800 watts/sqm.
	Power consumption (average)	260 watts/sqm.
	Input voltage	AC 110 or 220 V ± 10%
Mechnical design	LED cabinet weight	83 kgs
	Material	Iron
	Ingress protection	IP65
	Serviceability	Front service
Operation	Storage environment	Temperature: -40℃ ~ 60℃
		Humidity: 10% ~ 85% RH
	Operating environmrnt	Temperature: -20℃ ~ 50℃
		Humidity: 10% ~ 90% RH
	Lifespan (typical)	≥100,000 hours
	MTBF	≥10,000 hours
	Source compatibility	CVBS, YC, YUV, RGB, DVI, SDI, HD-SDI, HDMI

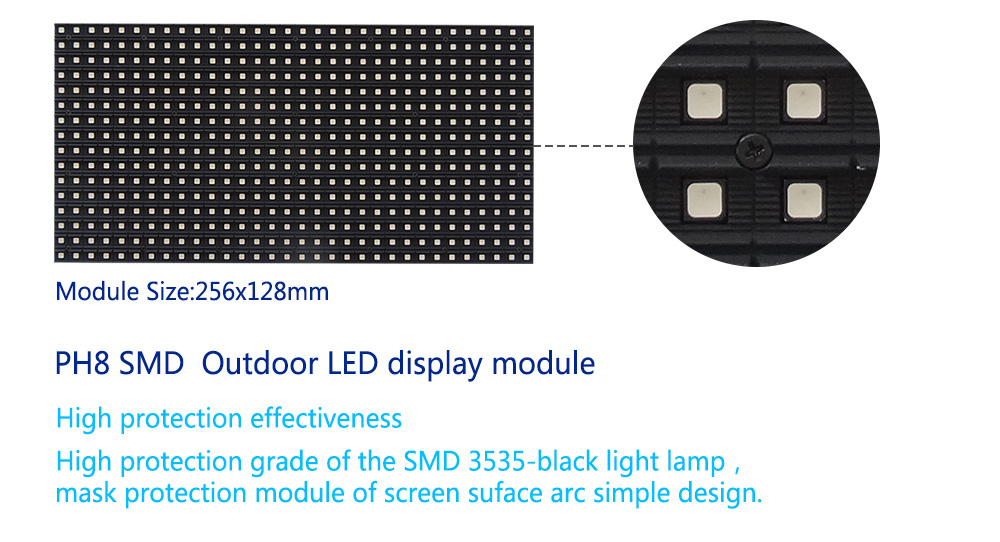

P8 outdoor Street Lamp post LED Module:LR-PH8-32*16-4SD35
