High End Full Color Hd Video Outdoor Rental LED Display 250*250mm Module Size
Technical specification:
| Item | Parameters |
| Model | P4.81 |
| Pixel Pitch(mm) | 4.81 |
| Physical Density (dot/sqm) | 43264 |
| LED Configuration | 1RGB |
| LED Type | SMD1919 |
| Module Size (mmxmm) | 250x250 |
| Module Resolution (PXxPX) | 52*52 |
| Scanning mode | 1/13 |
| Brightness(cd/sqm) | 800-300 |
| Grey Scale | 16bit |
| Refresh Rate(Hz) | 3840Hz |
| Drive Mode | Constant Current Drive |
| Module Mask Structure | Yes |
| Horizontal Viewing Angle(Deg) | 140 |
| Vertical Viewing Angle(Deg) | 120 |
| Cabinet Resolution(PXxPX) | 250x250 |
| Module Power Consumption(w) | 22.5 |
| Cabinet Max Power Consumption(w) | 200 |
| Cabinet Average Power Consumption(w) | 60 |
| Cabinet Size(mmxmm) | 500x500 |
| Cabinet Weight(kg) | 7 |
| Cabinet Thickness(mm) | 85 |
| Cabinet Material | Die-casting Aluminum |
| Color(M) | 16.7 |
| Input Voltage | AC110V-220V +/-10% |
| Refresh Frame Frequency(Hz) | 40-60 |
| Protection Level | IP65 |
| Working Environment | Outdoor |
| Working Temperature(℃) | -40°-+60° |
| Storage Humidity(RH) | 40%-60% |
| Life Span(H) | 100,000 |
Product Description:
♥ High-precision die casting aluminum material cabinet,special design on cabinet bottom ensures flatness of whole screen even the platform is not flat.Also can protect modules in screen bottom.Front and back maintenance design by module magnet assembly.
♥ 250mm×250mm module,compatible PH3.91/PH4.81. High contrast,high gray scale,800~3500CD adjustable brightness to meet the indoor and outdoor scenes.
♥ PWM driving IC,refresh≥3840HZ,ensures true 16bit gray level.
♥ High-perfomance PCB board substrate with strict technology process ensure perfect flatness performance,showing the most real and brilliant colors.
♥ Optional LCD panel design on cabinet back can show company name,LOGO,temperature,humidity,working voltage,cumulative operation time etc.

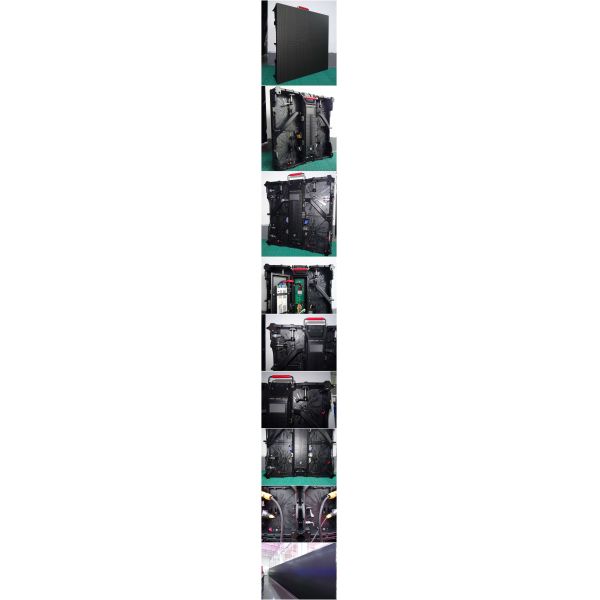

Product Details:
Product Specification:
Case:
Shipping:
Company Information:
Shen Zhen Longrun LED Optoelectronic Co.,Ltd,a professional LED display manufacturer,was established in 2009 which has his own R&D department and a total of more than 12,000 square meters of ultra-clean,anti-static plant,the most advanced automatic equipment.Being one of the domestic leading suppliers in LED product application and solution,Longrun has separate purification plant,R&D base,and the industry's most advanced automated production and testing equipment.It dedicates in providing terminal clients with LED applications of high quality and performance and also with the most effective service.
Production process:
Certificate:
User Guidline:
1. Keep right temperature and humidity.
Humidity is important for LED display, do not get wet in the rain for indoor display, and do not store display in high humidity environment. As for rental display, please keep dry and clean to flightcase, saving some desiccants in flightcase is recommended, and please change the desiccants regularly. For display that have not used for a long time (over two weeks), dry it with blower before using. And don’t run max brightness for the first trial.
2. Power supply system must be stable, especially for protection of ground connection. Stop using LED display in bad weather, such as strong thunder or lightning.
3. It is forbidden to get conductive material in display, like water and iron chips. Keep display in Low-Dust environment, too much dust influences circuit of display and display effect in the meantime.
4. LED display ON/OFF.
l Run PC and control system then turn on display.
l Turn off display before PC after using.
l Do not turn on display when it is on white balance situation to avoid high start current that can damage PCB circuit of display or control card.
5. LED display using.
l In dry season (<60%RH), it is suggested that run LED display once in one week at least, and running time is more than 2 hrs, also off time is more than 2 hrs per day.
l In rainy season (>80%RH), it is suggested that run LED display once everyday, adjust display brightness to be 60%, and play video above 3hrs, the best running time is between 7am to 10am.
l In normal season (60%-80%), it is suggested that run LED display once in one week at least, adjust display brightness to be 60% for playing video around 5hrs, the best running time is between 7am to 10am and 6pm to 10pm.
l Do not play in max white balance for a long time (> 2hrs) to avoid excessive current that can speed up LED decay and short its spanlife.
6. LED display daily cleaning and maintenance.
Timely clean dust on display with soft cloth dipping with alcohol or by vacuum cleaner. Do not wipe led display surface with led lights directly by water.
7. Assembly or disassembly LED display must be handled by professional people.
8. Regularly checking LED display inside components and circuits, all maintenance and service jobs must be handled by professional people.
