Energy Saving Roadside LED Display , P4 P5 P6.66 P8 P10 Outdoor Led Billboard
1. The first level LED chip from Taiwan Epistar.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Disassembly and assembly are quick and easy.
8. Three years warranty.
Parameters:
| P4 SMD Outdoor |
| LEDs | Pixel pitch | 4mm |
| Pixel configuration | 1RGB |
| LED type | 1921SMD |
| LED manufacturer and origin | KNLIGHT |
| Cabinet | Pixel pitch | 4mm |
| Pixels per sqm. | 62,500 pixels |
| LEDs qty. per sqm. | 62,500pcs |
| LED module resolution | 80x40 |
| LED module size | 320*160mm |
| LED cabinet resolution | 240(W) x 240 (H) cm |
| LED cabinet dimension | Width: 960 mm; Height: 960 mm; Depth:100mm |
| LED cabinet Area | 0.9216 sqm. |
| Brightness | 6200-6500cd/sqm |
| Viewing angle | Horizontal: 160°; Vertical: 120° |
| Grey scale (linear) | 65,396 levels per color |
| Display refresh rate | 1920 Hz |
| Scan mode | 1/10 scan |
| Power supply | Power consumption (max.) | <1200 watts/sqm. |
| Power consumption (average) | <1000 watts/sqm. |
| Input voltage | AC 110 or 220 V ±10% |
| Mechanical design | LED cabinet weight | 43kgs |
| Material | Iron cabinet |
| Ingress protection | Waterproof |
| Serviceability | Back service |
| Operation | Storage environment | Temperature: 0°C-40°C; Humidity: 10%-85%RH |
| Operating environment | Temperature: -20°C-65°C; Humidity: 10%-90%RH |
| Lifespan (typical) | ≥100,000 hours |
| MTBF | ≥10,000 hours |
| Source compatibility | CVBS,YC, YUV,RGB, DVI, SDI, HD-SDI, HDMI |
Stage Background Led Digital Display Screen Module Details:

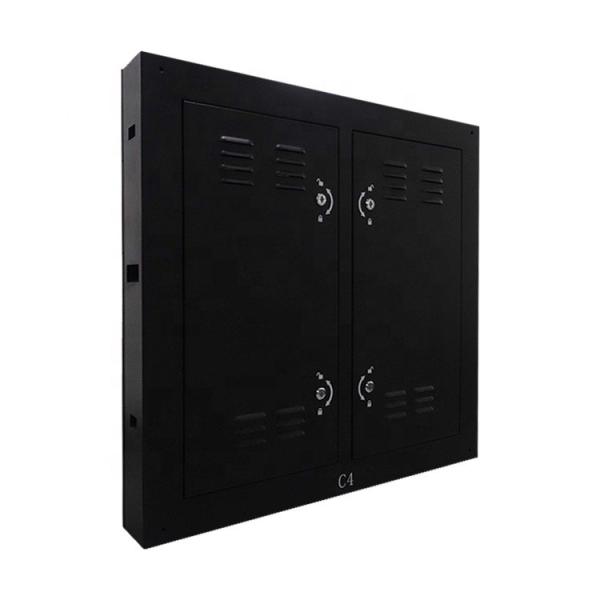

Stage Background Led Digital Display Screen Cabinet Details:
LongRun Optoelectronics Co.,Ltd,a professional indoor and outdoor full color led screen display manufacture,which can offer any kinds of led panel in competitive price.Tag: Led Outdoor TV Billboard ,Stage Background Led Display Big Screen ,Advertising led display,Led video wall,led billboard,led display panel,truck mobile led display,indoor advertising led display screen,stage led screen for concert,outdoor led advertising screen,P4 indoor led exhibition display,theatre led display,led screens for events,rental mobile led screen ect with great quanlity and excellent support after sale.
Our engineers have vast experience in the industry having developed all kinds for led panel solutions includign message boards,graphic panels,time/temperature displays,full color video screen.
Over the years we have installed thousands of led displays into numerous industries-shops,shopping center,corporate offices,factories,call center,government buildings,transport links,stadiums and arenas.
LongRun LED Display Screen Exhibition in 2014:
Stage Background Led Digital Display Screen Certification:
Our Services
1. Your inquiry related to our products or price will be replied in 12hrs.
2. OEM&ODM,any your customized lightings we can help you to design and put into product.
3. Distributoership are offered for your unique design and some our current models.
4. Protection of your sales area,ideas of design and all your private information.
5. Best cost performance and perfect service before and after sales.
Thank you for your interest in Stage Background Led Digital Display Screen from LongRun. We look forward to the opportunity to provide you with our best service!
